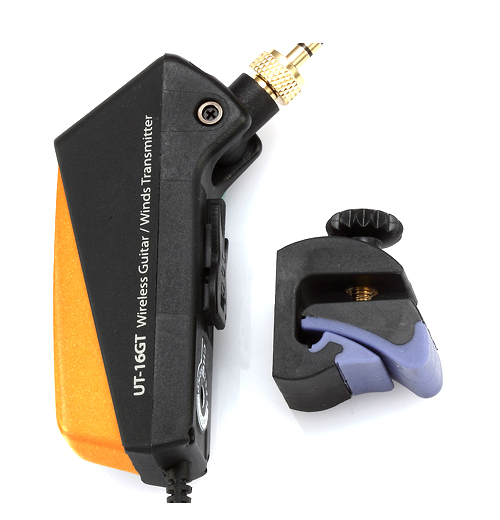

UR816D/UT-16GT



‧Preset 16 selectable UHF channels.
‧Single transmitter operation.
‧Diversity technology prevents dropouts in the RF link.
‧PLL synthesized technology.
‧Noise mute and pilot tone squelch.
‧Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
‧Tuned antennas maximize the effective range of the wireless link.
‧Compact half rack space design.











‧Sub miniature guitar transmitter with patent pending design.
‧UHF PLL 16 preset selectable channels.
‧Powered by one AAA battery for over 8 working hours.
‧Over 60 meters of stable operation distance.
‧High signal to noise ratio.
‧Standby function provided for stable wireless link.
‧Provide great convenience to both guitarist, winds and accordion player.



Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
RF Outputs	Maximum 10mW
Stability	±10KHz
Frequency Deviation.	±48KHz
LED Display	Power On/Off, Low battery
Controls	Power On/Off, AF Level, Channel Selecting, Mute
Spurious Emissions	<-50 dBC
Audio Frequency Response	40~18,000 Hz
Battery	LR03, AAA 1.5V
