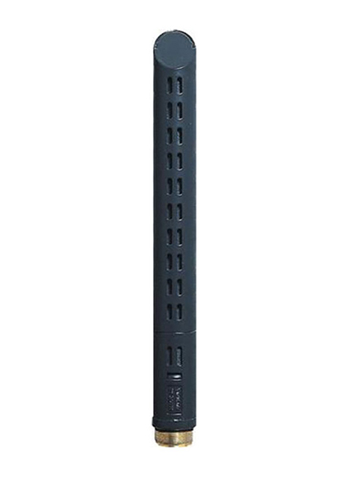

AKG CK80 나사고정식 캡슐 모듈
– 하이퍼카디오이드 극성 패턴
– 80° 수음 각도
– 스크류 연결방식의 캡슐 모듈
– 숏건 캡슐
– 스피치에 최적화된 주파수 반응
|
||
|
An 80° pickup angle and speech optimized frequency response provide excellent intelligibility in acoustically critical environments. Its outstanding price/performance ratio is just as convincing as its sound and high gain before feedback. Complete with W 80 windscreen. Suitable Discreet Acoustics modules: all GN gooseneck modules, HM 1000 hanging module. Shortcuts: |
||
| Polar pattern | hypercardioid |
| Pickup angle | 80° |
| Frequency range | 60 to 15,000 Hz |
| Sensitivity | 30 mV/Pa (-30 dBV) re 1 V/Pa |
| Max. SPL | 125 dB (for 1 % THD) |
| Equivalent noise level | 17 dB-A |
| Signal/noise ratio (A-weighted) | 77 dB |
| Impedance | <=600 ohms |
| Recommended load impedance | >=2,000 ohms |
| Supply voltage | 9 to 52 V phantom power, requires DPA adapter (supplied with most Installation Modules) |
| Current consumption | <3 mA |
| Connector | Discreet Acoustics Modular standard |
| Finish | matte dark grey |
| Dimensions | 13.5 dia. x 123 mm length (0.5 dia. x 4.8 length in.) |
| Net weight | 15 g (0.5 oz.) |
| Shipping weight | 208 g (7.3 oz.) |
